MT5 x 3" Bull Nose Live Center for Lathe, Morse Taper #5 Pipe Center, 60°, 2,500 RPM, 1,102 lb Load Capacity, 0.005 mm Precision, Made in Taiwan

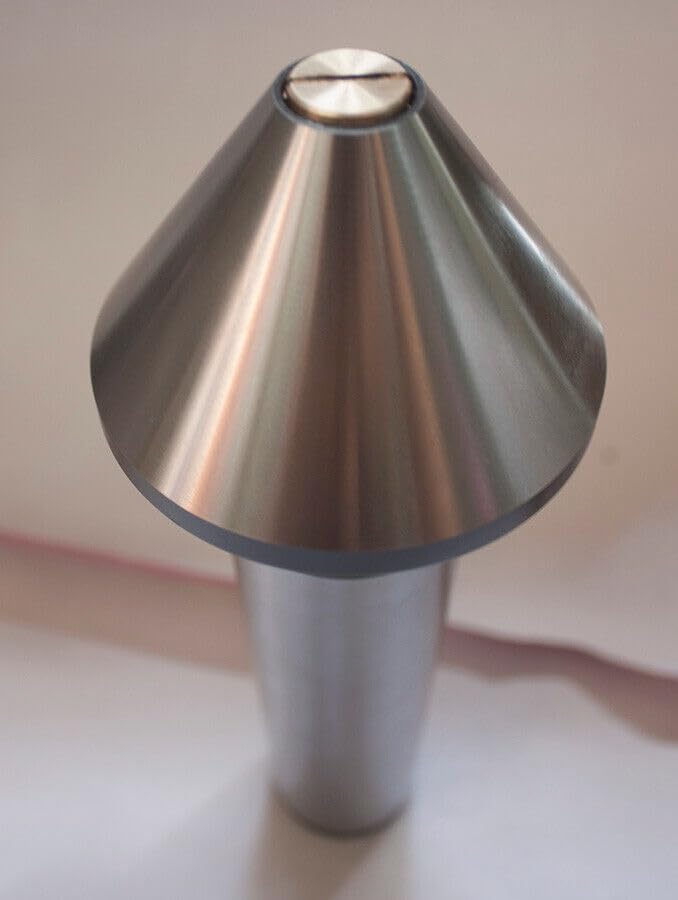

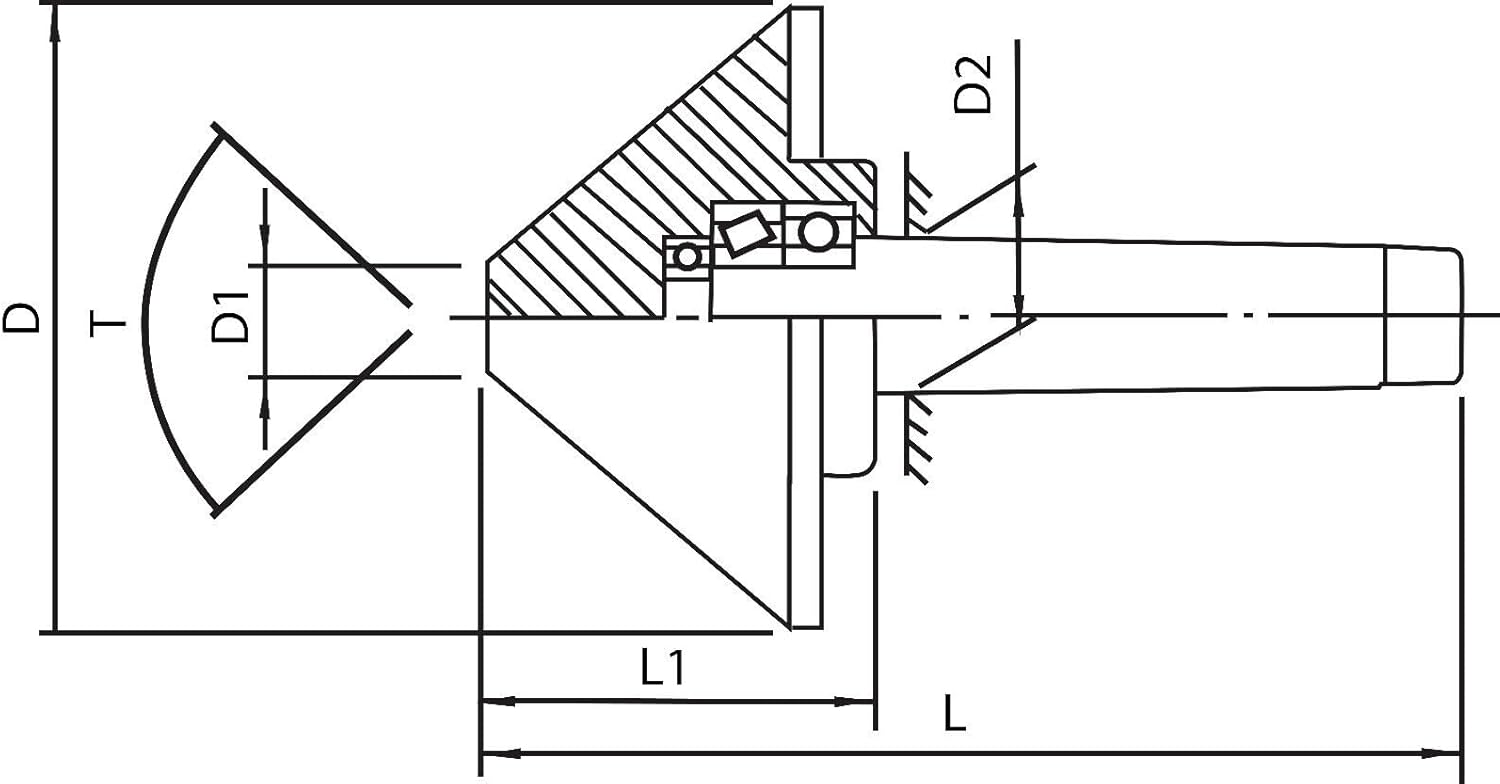

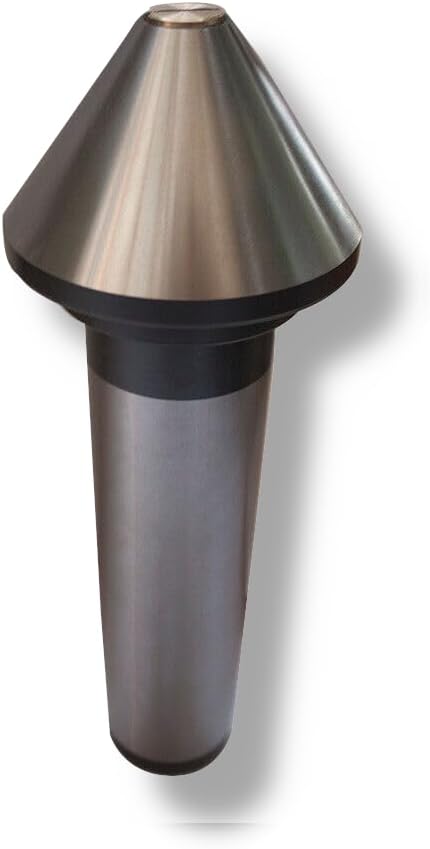

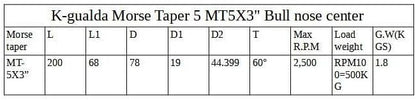

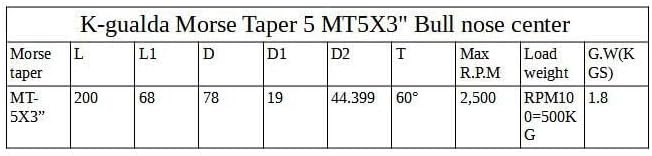

K-GUALDA MT5 x 3" Bull Nose Live Center Designed for supporting pipes, tubes, and large-bore workpieces during lathe turning, the K-GUALDA MT5 x 3" Bull Nose Live Center combines precision, load capacity, and durable construction for professional machining applications. The 78 mm bull nose features a 60° profile and is designed to provide stable support for pipes, tubes, and workpieces with large center holes. With a maximum operating speed of 2,500 RPM, a maximum workpiece capacity of 500 kg (1,102 lb), and concentricity of 0.005 mm, it is built for demanding turning applications. The bull nose contact surface is salt bath heat treated and hardened to HRC 60, providing excellent wear resistance and durability at the working surface. The live center incorporates Japanese bearings and high-performance Klüber grease from Germany. Its waterproof design provides additional protection in demanding machining environments. Specifications: Morse Taper: MT5 Bull Nose Diameter (D): 78 mm Overall Length (L): 200 mm L1: 68 mm D1: 19 mm D2: 44.399 mm Cone Angle: 60° Maximum Speed: 2,500 RPM Maximum Workpiece Weight: 500 kg / 1,102 lb Concentricity: 0.005 mm Bull Nose Contact Surface Hardness: HRC 60 Heat Treatment: Salt Bath Heat Treatment Gross Weight: 3.18 kg Country of Manufacture: Taiwan
