K-Gualda MT5 Live Center, Standard A-Type, Morse Taper 5 for CNC and Conventional Lathes

MT5 TAILSTOCK FIT: Standard A-Type live center with a Morse Taper 5 shank for compatible CNC and conventional lathe tailstocks. Confirm taper size and clearance before ordering.

HARDENED SKD11 POINT: The JIS SKD11 tool steel point is vacuum heat-treated to approximately HRC 60 for hardness and wear resistance. The body is made from SCM440 alloy steel.

JAPANESE BEARINGS: Incorporates dual ball bearings, a thrust bearing, and a needle roller bearing to support the rotating center during machining.

KLÜBER LUBRICATION: Uses Klüber lubricant from Germany to lubricate the bearing assembly during operation.

WORKPIECE SUPPORT: Listed maximum workpiece weight is 1,800 kg (3,968 lb). Select operating speed and load according to the manufacturer's specifications and machining conditions.

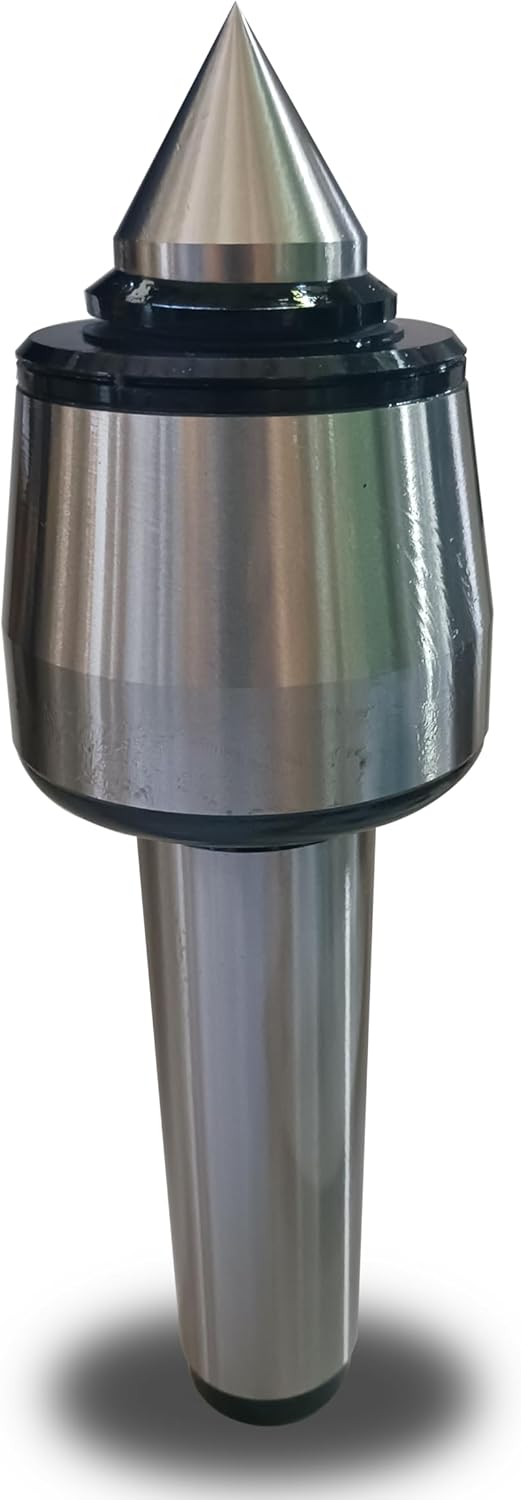

The K-Gualda MT5 Standard A-Type Live Center supports workpieces during CNC and conventional lathe turning. Its Morse Taper 5 shank fits a compatible MT5 tailstock.

The JIS SKD11 tool steel point is vacuum heat-treated to approximately HRC 60. The SCM440 alloy steel body houses Japanese bearings in an assembly combining dual ball bearings, a thrust bearing, and a needle roller bearing. Klüber lubricant from Germany lubricates the assembly.

Specifications:
• Model: MT5 Standard A-Type
• Shank: Morse Taper 5
• Point: SKD11, approx. HRC 60
• Body: SCM440 Alloy Steel
• Maximum Workpiece Weight: 1,800 kg (3,968 lb)

Confirm tailstock compatibility and clearance. Follow the manufacturer's operating speed and load limits.
