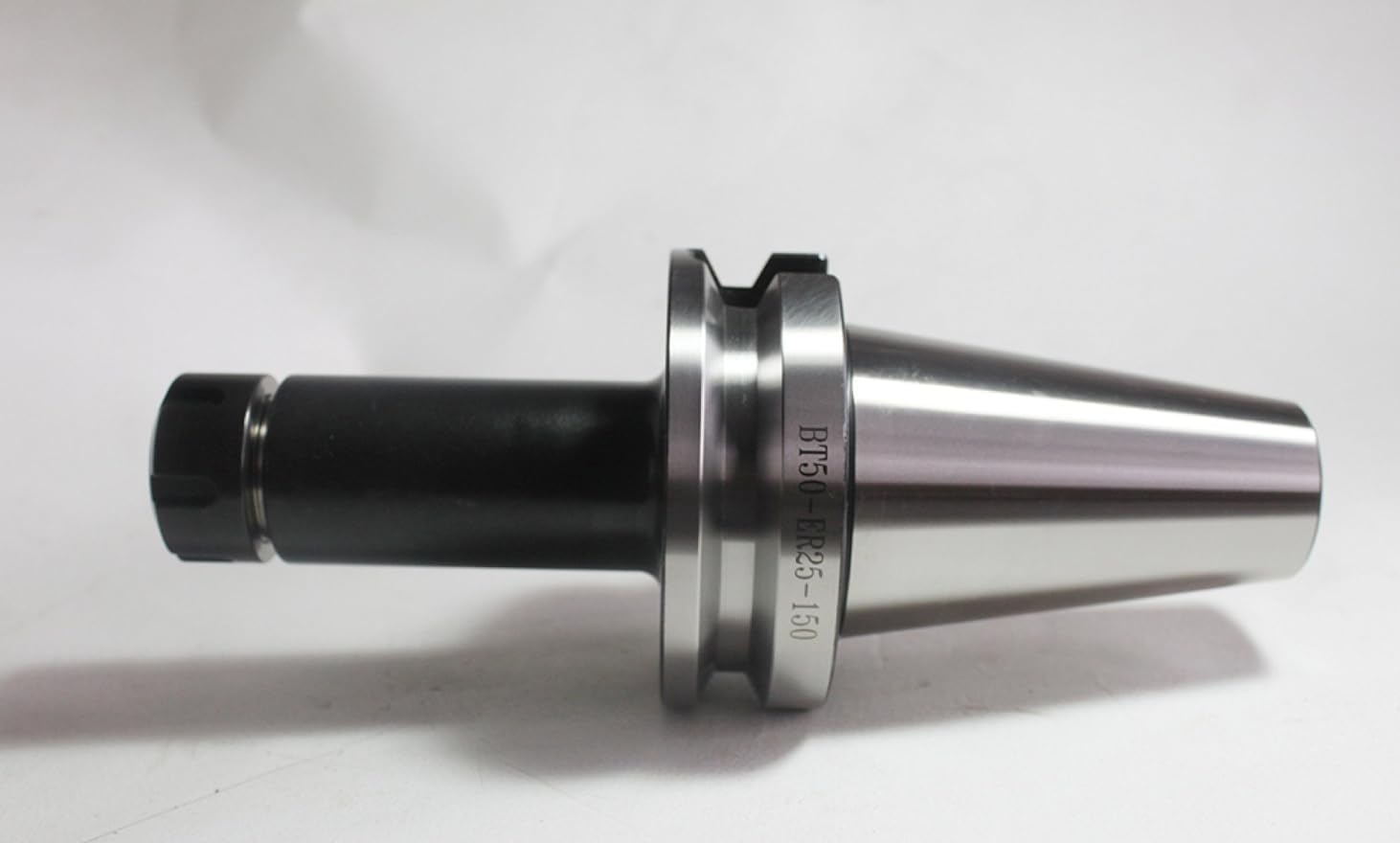

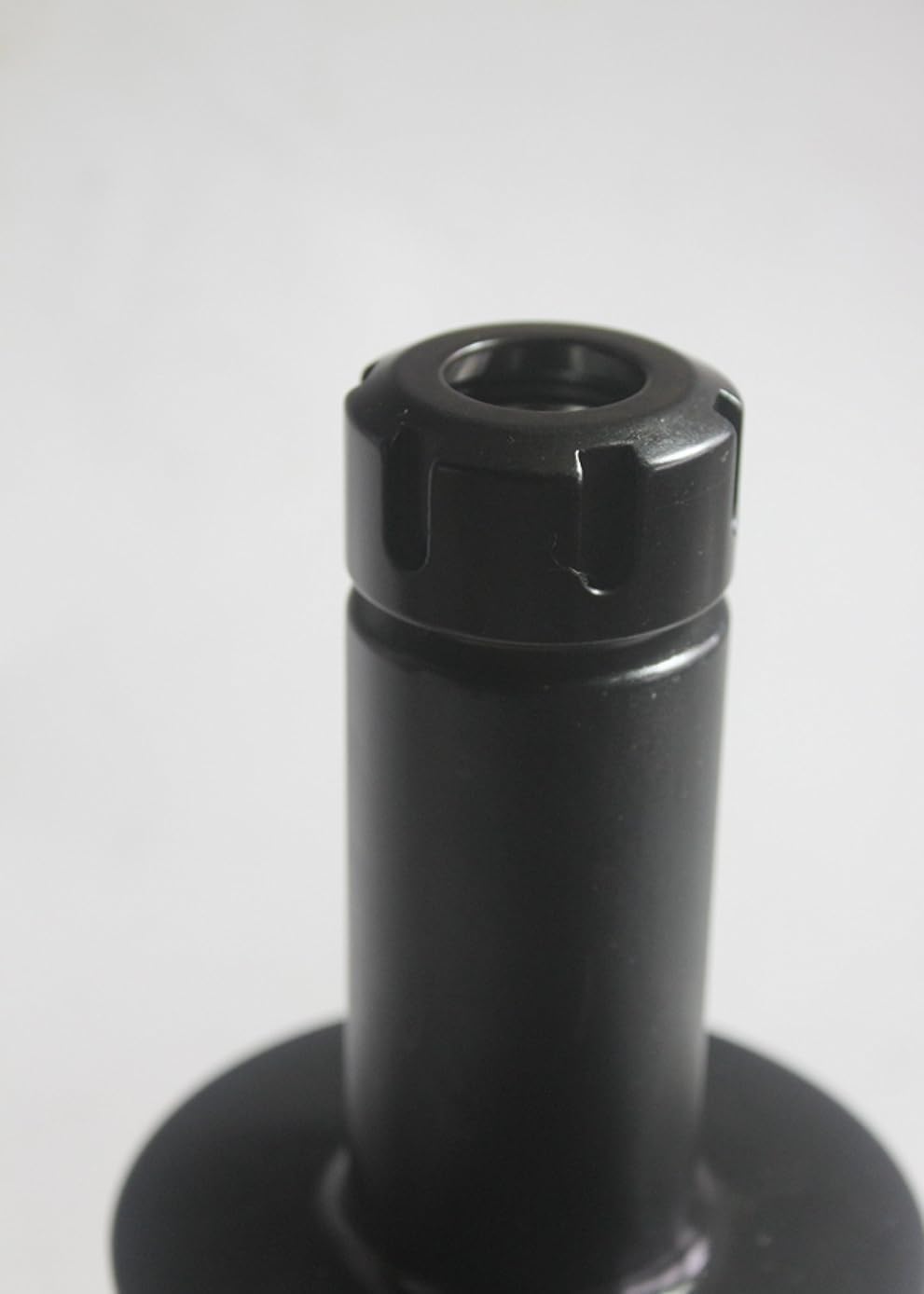

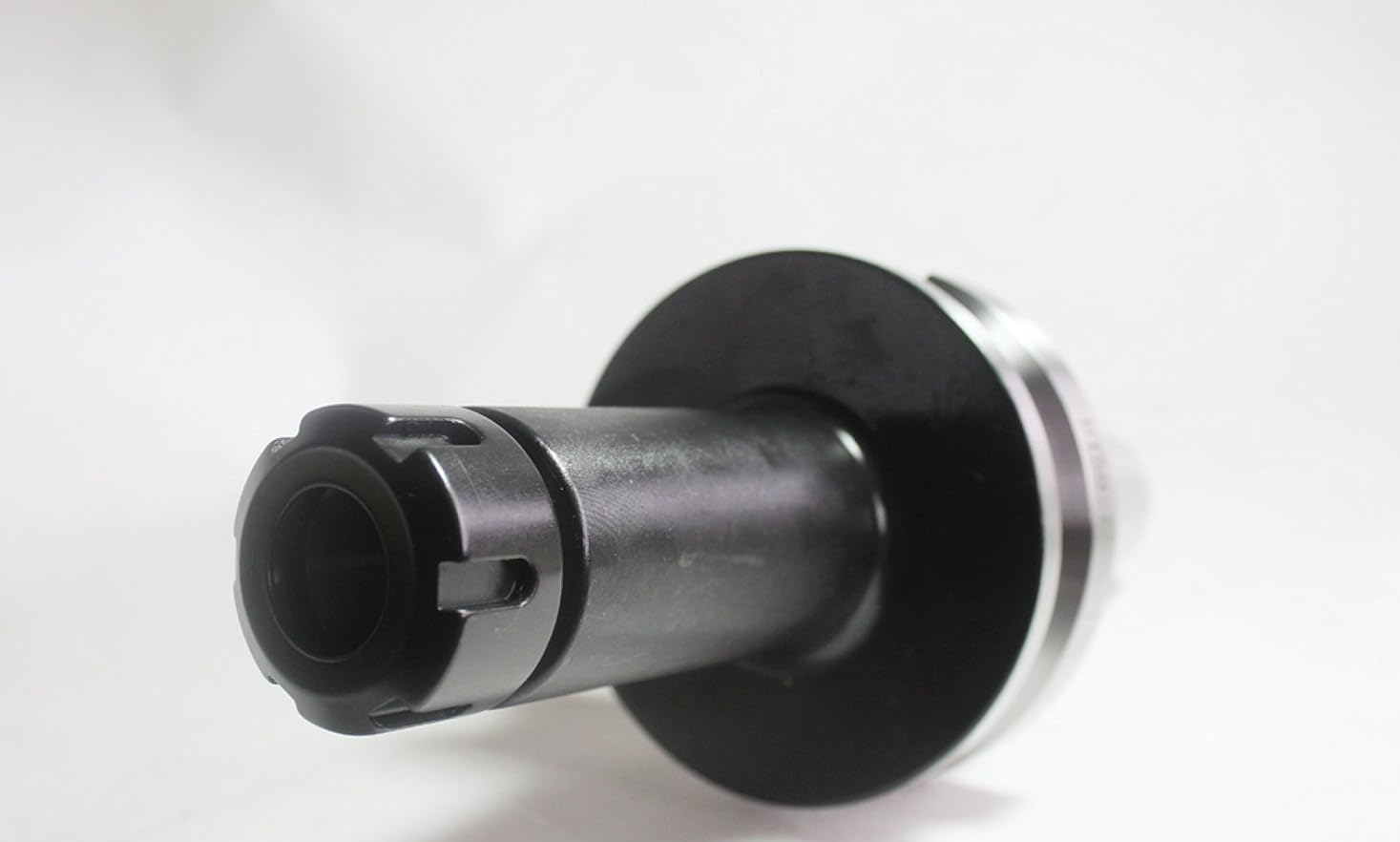

K-Gualda BT50-ER25-150L Collet Chuck Tool Holder, SCM420 Alloy Steel for CNC Milling

BT50 SPINDLE COMPATIBILITY: Designed for CNC milling machines and machining centres with compatible BT50 spindles. Confirm your machine's spindle and pull stud requirements before ordering.

ER25 COLLET SYSTEM: Holds compatible straight-shank end mills, drills, and other cutting tools using an appropriately sized ER25 collet.

150L CONFIGURATION: Model BT50-ER25-150L provides an extended tool-holding configuration. Check the dimensional drawing to confirm reach and clearance for your machining setup.

HEAT-TREATED SCM420 STEEL: Made from JIS SCM420 alloy steel with heat treatment to HRC 56 for durability in machining applications.

MODEL AND PACKAGE: Includes 1 BT50-ER25-150L collet chuck tool holder. Confirm collet size, cutting tool shank diameter, pull stud compatibility, and machine clearance before purchase.

The K-Gualda BT50-ER25-150L Collet Chuck Tool Holder is designed for CNC milling machines with compatible BT50 spindles. Its ER25 collet system holds straight-shank cutting tools using a correctly sized ER25 collet. The extended configuration provides additional reach where required by the machining setup.

Specifications:
• Model: BT50-ER25-150L
• Spindle Taper: BT50
• Collet Series: ER25
• Material: JIS SCM420 Alloy Steel
• Heat Treatment: HRC 56
• Package: 1 x Collet Chuck Tool Holder

Before ordering, check the dimensional drawing and confirm spindle compatibility, pull stud requirements, cutting tool shank diameter, and tool clearance.
